SIMPLIFIED DRIVETRAIN

The simplified, variable-speed hydrostatic drive makes operation simple and efficient. Multiple speed ranges provide excellent power and ground speed for maximum production. Optimal axle ratios provide powerful pulling performance and improved reliability.

MACHINE FUNCTIONALITY

Strong multi-functioning hydraulics improve productivity allowing operators to steer and operate other functions simultaneously. The limited slip front axle and rear differential lock improves traction without impacting maneuverability allowing optimal operation even in wet conditions.

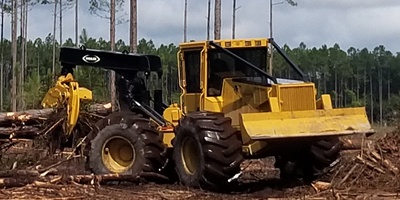

BEST-IN-CLASS VISIBILITY

The large front glass and sloped narrow hood provide excellent front visibility to the blade and allow increased visibility to the front of the machine. The unobstructed rear glass gives clear site to the grapple for quicker bundle grabbing and easy maneuverability for placing a loader.

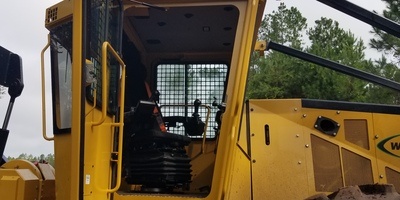

SPACIOUS OPERATOR’S CAB

The large, spacious cab provides the ultimate in operator comfort and features simple and easy-to-use controls. Weiler programming allows joystick button mapping for multiple control patterns. Joystick steering with front foot controls is standard, with an optional mechanical rotating seat that includes rear foot controls.

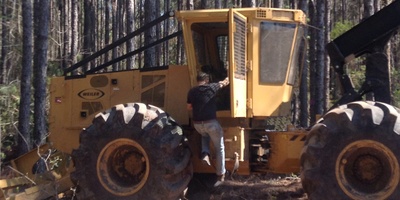

OPERATOR ACCESS

Wide steps on both sides of the machine and 90 degree door openings make it easy for operators to enter and exit the cab. The DEF tank and cab tilt pump are located in the LH saddle bag for ground level access. The RH saddle bag houses the batteries and the hydraulic fill pump for additional ground level accessibility.

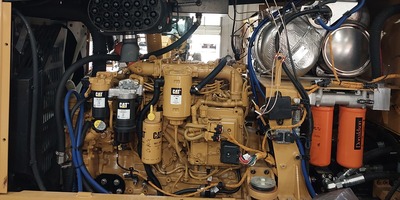

SIMPLE, CLEAN DESIGN

A reduction in components, fifty percent less hoses across the center section, and a front mounted cooling system with an engine driven fan deliver improved reliability and lower owning and operating costs. Easy engine and chassis access for best-in-class serviceability. Dual tapered roller bearing hitch pins, thicker panels, and solid steps provide maximum structural life.

Specifications
ENGINE MODEL Cat® C7.1 Stage 5
GROSS POWER 203 hp 151 kW
ENGINE SPEED 2200 rpm
FUEL CAPACITY 83.2 gal 315 L
DEF CAPACITY 5.0 gal 19 L
WHEELBASE 144" 3652 mm
WEIGHT 41,000 lb 18 597 kg
TRANSPORT WIDTH 10’ 7” 3.21 m
TRANSPORT HEIGHT 11’ 1” 3.39 m
TRANSPORT LENGTH 27’ 4” 8.32 m
GROUND CLEARANCE 21.7” 550 mm
BOX GRAPPLE CAPACITY 14.4 ft² 1.34 m²
BOX GRAPPLE OPENING 126.2" 3205 mm
BLADE GRAPPLE CAPACITY 15.7 ft² 1.46 m²
BLADE GRAPPLE OPENING 136.3" 3462 mm
__________________________________________________________________________________________________ _________________________________________________________________________________________
Base configuration includes 30.5L-32 26PR NOAW Tires, Fenders, Winch, Water Tank, Box Grapple, and Blade. Weight add 545 lb (247 kg) 30.5L-32 2X Ring tires, 1,508 lb (684 kg) for 35.5L-32 tires. Height and ground clearance add 2.4” (61 mm) for 35.5L-32 tires.
