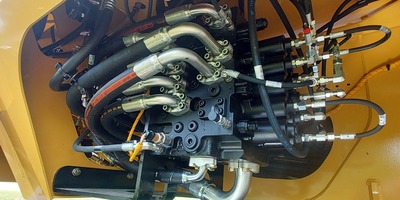

Built with a time-tested, heavy-duty
hydraulic system that has dominated
the woods for over two decades, the
K560A delivers maximum uptime and zero
guesswork. Each valve section is precisely
tuned for optimized flow and pressure,
ensuring efficiency and responsive control.
Grapple-saw ready, circle saw, and liveheel
hydraulic options enhance machine
versatility for specialized applications
without sacrificing performance. For
ultimate machine flexibility, the circle saw
system easily converts to operate a bar saw
slasher.

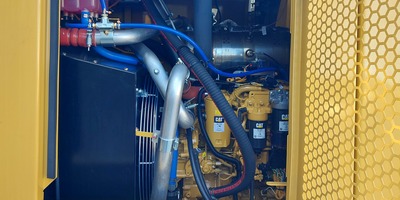

Built on a high-efficiency platform with
over 1 billion hours of real world, offhighway
experience, the compact Cat®
C4.4 Industrial Diesel Engine delivers
exceptional power density. This reliability
maximizes productivity while reducing
operating costs to protect your bottom line.

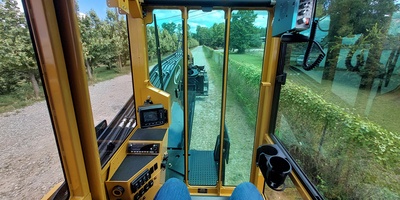

Designed for all-day comfort and superior
visibility, the newly upgraded cab features
a wider door entry and an air-ride seat with
optional heating and ventilation. To give
operators an uninterrupted view of the job
site, a high-impact polycarbonate window
with streamlined backing bars replaces the
front mesh grate.

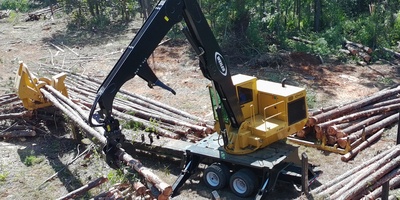

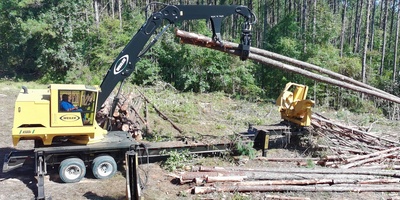

Weiler loaders come ready to work,
featuring a heavy-duty grapple and pullthrough
delimber mounted on a locally
sourced trailer with crawler suspension.
To simplify maintenance and extend bar
and chain life, the 426A delimber features
central lubrication, ground-level oil fill, and
an automatic chain tensioner.

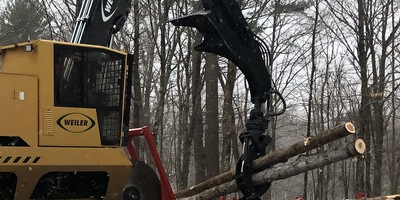

Upgraded structures and heavy-duty
hydraulics deliver increased lift capacity
to handle the heaviest logs with ease.
Ultra-responsive cycle times and familiar
pilot controls keep pace with the highestproduction
skidders allowing an operator to
lift, swing, and rotate the grapple without
any drop in performance.
| Specifications | |
|---|---|
| ENGINE MODEL | Cat® C4.4 Stage 5 |
| GROSS POWER | 184 hp 137 kW |
| ENGINE SPEED | 1800 rpm |
| FUEL CAPACITY | 100.0 gal 378 L |
| DEF CAPACITY | 10.0 gal 38 L |
| MAXIMUM REACH | 32’ 6” 9.9 m |
| WEIGHT | 58,240 lb 25 417 kg |
| TRANSPORT WIDTH | 8’ 6” 2.57 m |
| TRANSPORT HEIGHT | 13’ 3” 4.04 m |
| TRANSPORT LENGTH | 52’ 1” 15.88 m |
| SWING SPEED | 11 rpm |
| LIFT CAPACITY @ 25’ (7.6 m) | 16,500 lbs 7484 kg |
| HYDRAULIC OIL TANK CAPACITY | 50.0 gal 189 L |
| -------------------------------------------------------------------------- | --------------- |
| Base configuration includes standard loader hydraulics, 426A delimber, Pitts crawler suspension trailer, single V heel, 5055 TW grapple, and standard boom and stick. All transportation dimensions are of a trailer mounted loader |
