The precise balance of speed, power and weight deliver a nimble and fast, yet durable machine that can get around the block quickly and efficiently. Equipped with the Weiler HF220 fixed harvester head, a dangle head, or a drum mulching head, the H357 delivers versatility for many applications.

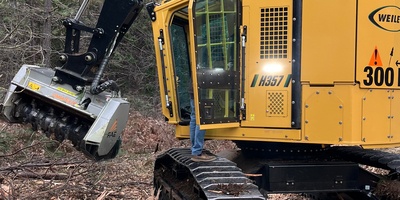

Harvester forestry cab with heated and cooled seat provides a comfortable and smooth ride. The forward positioned cab with LED work lights offers optimal visibility day and night. The rear hinged door allows quick access to the harvester or mulching head. Weiler’s control system features an easy to use operator interface.

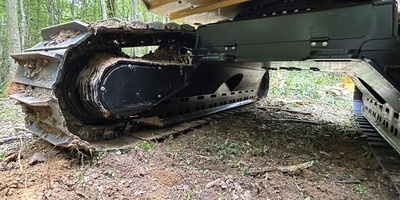

The proven x-design carbody and forestry-duty track system provide strength and durability. Side rails are designed so that debris does not collect. The fully guarded lower frame has integrated, welded track guards, with Cat® 330 HEX track assembly and extreme-duty top and bottom rollers.

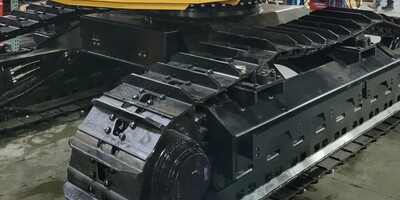

Durability is delivered through up-sized components including a large swing bearing, heavy-duty swing drive, purpose built final drives and Cat® undercarriage. The H357 is built tough to handle rugged terrain and tough logging conditions across the globe.

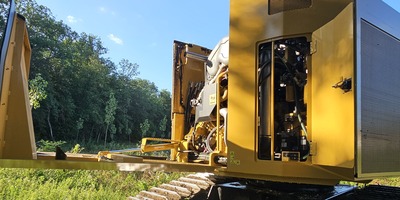

The layout of the H357 offers excellent service access for daily maintenance checks and major components. The opening gull-wing doors provide a stable work platform offering safe and comfortable access all around the machine. Large hinged service doors around the machine make all major components easily accessible.

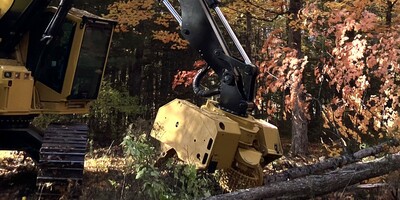

The Weiler FH220 fixed harvester head has a rugged 2 feed roller design that offers quick feed speed and plenty of torque to get through a multitude of species and tree types. With optional topping saw and bottom knife, the head is designed for hardwood delimbing and efficient processing.
| Specifications | |
|---|---|
| ENGINE MODEL | Cat® C7.1 Stage 5 |
| GROSS POWER | 250 hp 186 kW |
| ENGINE DISPLACEMENT | 433 in³ 7.1 L |
| WEIGHT (no head) | 53,000 lb 24 040 kg |
| MAX FLOW | 160 gpm 606 L/min |
| MAX REACH (no head) | 22’ 0” 6.71 m |
| LIFT AT MAX REACH (no head) | 11,500 lb 5216 kg |
| SWING TORQUE | 64,500 ft-lbs 87.5 kN-m |
| TRACTIVE EFFORT | 65,000 lbf 289.1 kN |
| UNDERCARRIAGE SIZE | 330 HEX |
| UNDERCARRIAGE PITCH | 8.0” 203 mm |
| GROUND CLEARANCE | 30” 762 mm |
| TRACK GAUGE | 101” 2565 mm |
| TRACK LENGTH | 174” 4420 mm |
| FUEL TANK CAPACITY | 140 gal 530 L |
| ENGINE OIL CAPACITY | 4.3 gal 16.3 L |
| HYDRAULIC SYSTEM CAPACITY | 80 gal 303 L |
| TRANSPORT WIDTH | 10’ 6” 3.19 m |
| TRANSPORT WIDTH - NARROW | 9’ 10” 2.99 m |
| TRANSPORT HEIGHT | 11’ 11” 3.63 m |
| LENGTH (boom ext. w/FH220) | 32’ 11” 10.03 m |
| ____________________________________________________________________ | ____________________________________________________________________ |
| Base configuration includes 22’ (6.71 m) fixed harvester boom and stick, 24” (600 mm) shoes, and FH220 harvester head. |
