PERFORMANCE BENCHMARK

The industry leading hydraulic system paired with pilot controlled joysticks and superior swing torque are the back bone of the K862 for strong and smooth operation. New, simplified, hose routings and cold oil bypass valve maximize hydraulic system component reliability.

PRODUCT VERSATILITY

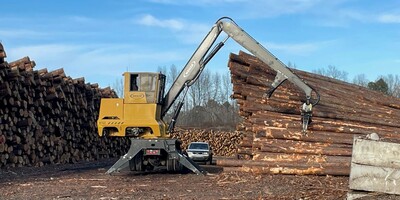

The K862 features many larger components including boom and stick cylinders, swing motor, and implement pump. Combined with strengthened structures and a standard counterweight, the K862 delivers the performance needed for high production jobs and large timber.

ENGINE SIMPLIFICATION

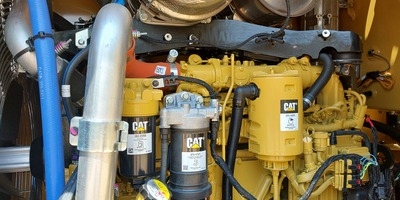

Stage 5 Cat® engines provide a simplified engine arrangement by reducing engine Electronic Control Modules (ECMs) from 3 to 1, new direct drive fan, and increased horse power for peak performance. Low Diesel Exhaust Fluid (DEF) consumption lowers overall operating costs.

EASE OF OPERATION

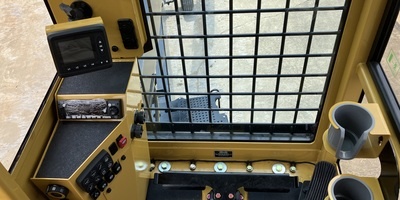

The Weiler control system uses the standard joysticks for stick steering and propel functionality paired with an additional foot pedal propel feature that allows the boom and stick to be used while traveling. A creep mode allows the carrier to operate at a low speed while in a high gear.

IN-HOUSE INSTALLATION

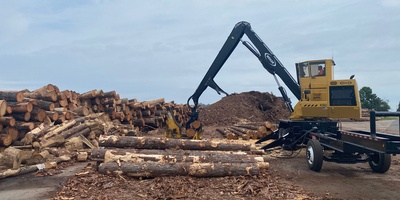

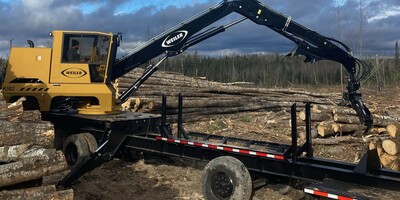

Weiler factory installation of the self propelled ready knuckleboom loader onto customer or dealer supplied carrier allows for full integration with the loader controls and factory testing to ensure maximum quality and functionality.

LINE OF SITE

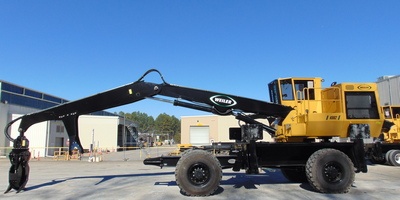

The fixed cab riser option raises the overall height perspective of the operator. This gives the operator better visibility when stacking high piles, loading or off loading trucks, or loading out rail cars. The riser can be manually folded over if transporting the loader off of a mill yard or other site.

Specifications
ENGINE MODEL Cat® C7.1 Stage 5
GROSS POWER 202 hp (151 kW)
ENGINE SPEED 1800 rpm
WEIGHT 36,500 lb (16 556 kg)
FUEL CAPACITY 100 gal (379 L)
DEF CAPACITY 4.2 gal (16 L)
SWING TORQUE 73,800 lbf-ft (100 kN·m)
SWING SPEED 9.5 rpm
MAXIMUM REACH 32' 6" (9.90 m)
TRANSPORT WIDTH 8' 6" (2.57 m)
TRANSPORT HEIGHT 13' 3" (4.04 m)
TRANSPORT LENGTH 52' 1" (15.88 m)
